As a key material in soft pack lithium batteries, aluminum laminated film (also known as ALF) is widely used in 3C consumer batteries, energy storage batteries, power batteries, and solid-state battery. It has the advantages of weight reduction, material reduction, diverse shapes, and non-explosion resistance.ALF is the flexible packaging film of lithium ion battery, and it is also the most critical and technically difficult material in soft packaging lithium battery. FIRST aluminum-plastic film insists on independent research, and its independent formula is designed in core raw materials such as "PP film, anti-corrosion layer, outer layer adhesive, inner layer adhesive". It has more than 30 technology patents. FIRST has well-developed aluminum-plastic film design and development technical capabilities, has developed electrolytic corrosion resistance, black, ultra-thin and other series of aluminum plastic film, to meet the needs of different customer application scenarios, and constantly develop new products, improve quality. The aluminum-plastic film products produced have been highly recognized by customers, with cumulative shipments exceeding 50 million square meters.
Dry Lamination Process Series Aluminum Plastic Film
Hot Pressing Process Series Aluminum Plastic Film
Dry Lamination Process Series Aluminum Plastic Film
The FIRST ALF dry process products are produced using advanced equipment, proprietary AL processing technology, and advanced dry process technology, ensuring excellent performance in composite strength, electrolyte resistance, and formability. This series of products are particularly suitable for the soft packaging design of 3C digital lithium batteries due to its lightweight characteristics, covering multiple fields such as smartphones, tablets, computers, cameras, and electric toys. At the same time, we provide customized products to meet specific application needs such as electronic cigarettes, power batteries, solid-state batteries, sodium ion batteries, etc.
Main characteristics
Good penetration performance
Good anti short circuit performance
Excellent appearance and cutting performance

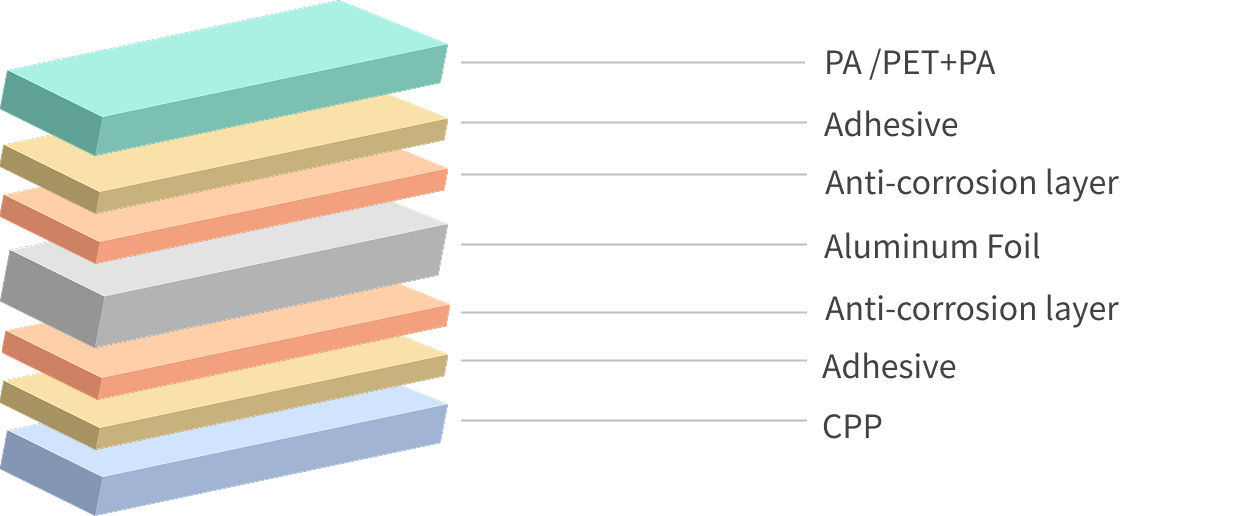

Product Structure and Specifications
Model
Thickness μm
Model
Thickness μm
FALF-76DL
76
FALF-113DL
113
FALF-88DL
88
FALF-P113DL
116
FALF-91BDL
91
FALF-153DL
153
FALF-113BDL
113
FALF-P153DL
153
Performance
Typical Values
Unit
Test Method
Model
91BDL
113BDL
76DL
88DL
113DL
P113DL
153DL
P153DL
Thickness
μm
GB/T 6672-20010.0001mm
91
113
76
88
113
116
153
153
Peel Strength PA/ALSealing Strength
N/15mm
GB 8808-88180o 50 mm/min
≥2
≥3
≥2
≥2
≥3
≥4
≥3
≥4
Peel Strength AL/PPSealing Strength
N/15mm
GB 8808-88T-shaped??300 mm/min
≥9
≥11
≥7
≥9
≥11
≥11
≥18
≥18
Electrolyte Sealing Strength
N/15mm
QB/T 2358-1998PP deformation rate is 30-50%
≥45
≥60
≥40
≥45
≥60
≥60
≥80
≥80
ElectrolyteElectrolyte Sealing Strength
N/15mm
QB/T 2358-1998PP deformation rate is 30-50%
≥40
≥50
≥35
≥40
≥50
≥70
≥70
≥4
Formability
mm
Mold Size60 mm×75 mmR=1.5 mm
≥5.0
≥6.0
≥4.5
≥5.0
≥6.0
≥5.5
≥6.0
≥5.5
Electrolyte Resistance
N/15mm
EC/DEC/DMC=1/1/1 1mol/L LiPF?85 ℃?24 h
≥8
≥10
≥6
≥8
≥10
≥10
≥14
≥14
Lab value
Hunter Lab UltraScan VIS
L?25.0±2.0 a?0±1.0 b?-1.0±1.0
/
/
/
/
/
/
The average thickness deviation is within ±6%, width deviation is ±1mm, length deviation is 0-2m, winding end face uniformity ±1mm, product standard specification width 400 mm/480 mm/800 mm, length 200~500 m.
At the same time, the customized R&D, production and sales of special specifications can be achieved to meet our customers' requirements as much as possible.
